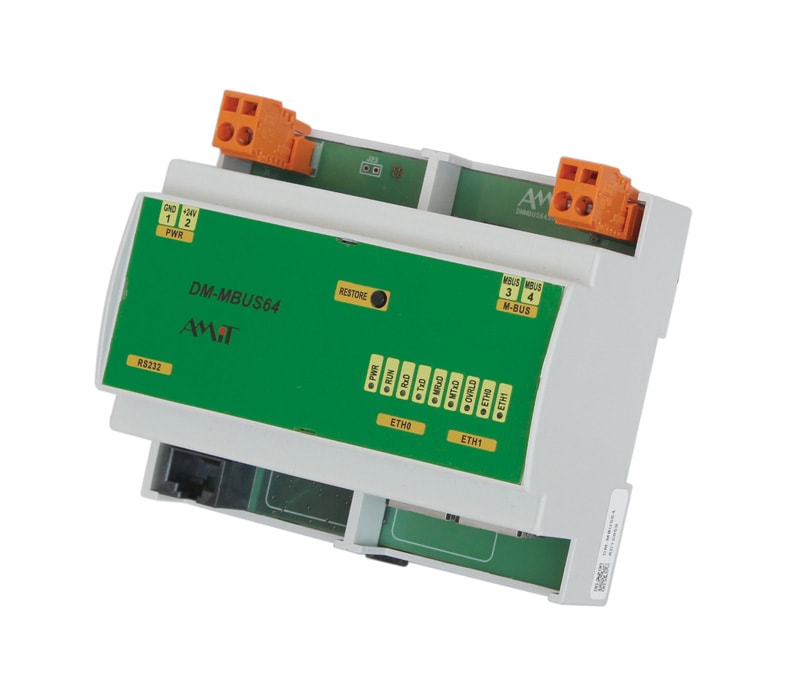

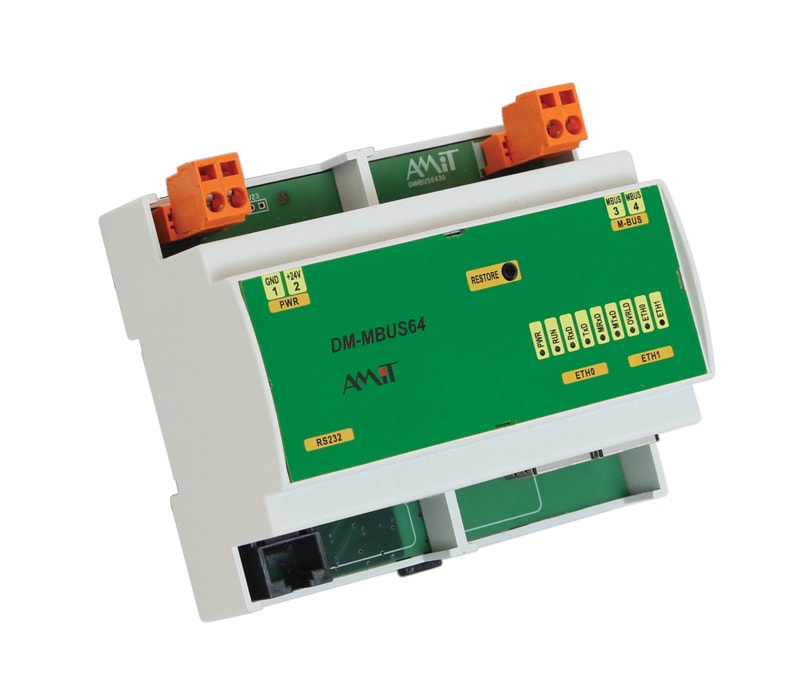

DM-MBUS64 - převodník sběrnice M-Bus až pro 64 zařízení

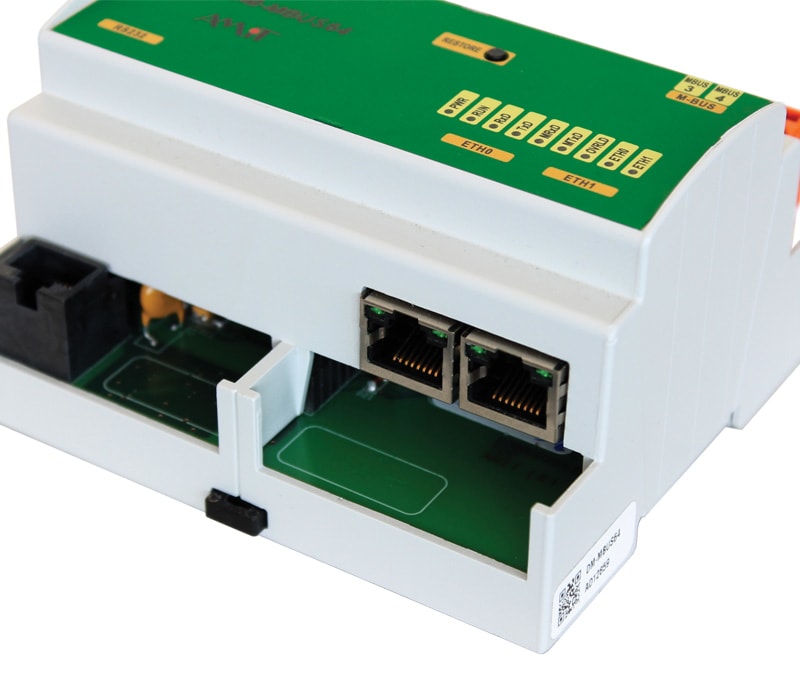

Mikroprocesorový převodník DM-MBUS64 s rozhraním M-Bus je určen pro odečty měřičů energií - odečty měření tepla, chladu, vodoměry, elektroměry, plynoměry apod. K převodníku lze připojit až 64 zařízení M-Bus typu slave, sběrnice je napájena z vnitřního zdroje převodníku. Data ze sběrnice M-Bus jsou dostupná přes rozhraní RS232 nebo Ethernet (switch se dvěma porty). Převodník je určen k montáži na DIN lištu 35 mm a je napájen ze zdroje 24 V ss. Převodník vzájemně galvanicky odděluje všechna komunikační rozhraní, M-Bus sběrnice je galvanicky spojena s napájecím zdrojem. M-Bus sběrnice je na straně převodníku chráněna proti zkratu linky a proti přepětí (transil 600 W), navíc umí indikovat stav přetíženého rozhraní. Převodník DM-MBUS64 podporuje tyto komunikační možnosti: RS232
  • MODBUS RTU
  • transparentní (Direct) režim
Ethernet
  • MODBUS TCP/IP (max. 6 klientů)
  • M-Bus rámce v režimu APE (protokol firmy AMiT) nebo režimu Direct (rámce zapouzdřeny do TCP nebo UDP paketů)
  Způsob komunikace je možné volit na rozhraních RS232 a Ethernet nezávisle. Konfigurační data jsou uložena v EEPROM. Konfiguraci převodníku lze provádět prostřednictvím rozhraní RS232 nebo Ethernet (pomocí programu MB2ETTest) případně s použitím webového rozhraní (nutná aktivace servisního  režimu).
  • rozhraní master M-Bus, max. 64 SLAVE jednotek
  • rozhraní Ethernet 10 / 100 Mbps
  • rozhraní RS232 s GO

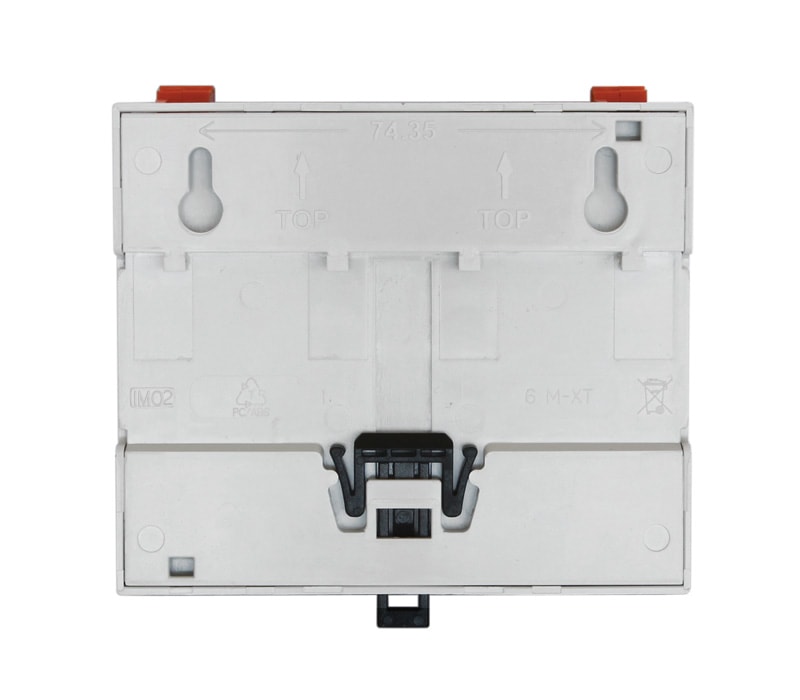

  • montáž na DIN lištu 35 mm
  • napájení +24 V ss.
  • komunikace MODBUS (TCP/RTU) / APE / Direct
Typ převodu
M-Bus <-> Ethernet / RS232
Montáž
Na DIN lištu 35 mm
M-Bus
1× (Master)
Ochrana proti přepětí
Transil 600 W
Ochrana proti zkratu
Elektronická
Počet připojitelných Slave jednotek M-Bus
1 až 64
Napájení M-Bus
Z interního zdroje
Galvanické oddělení M-Bus
Ne
Ethernet
1× (switch)
Přenosová rychlost
10 / 100 Mbps
RS232
Komunikační rychlost
1 200 bps až 57 600 bps
Galvanické oddělení
Ano
Přípojné místo
Konektor RJ45
Napájení
24 V ss. ± 20 %
Rozměr (š × v × h)
(106 × 100 × 62) mm
